Digital microscope of biological microscope with camera and software

Name: Digital microscope of biological microscope with camera and software
Brand: MSHOT
Price: 1 USD

Quality Digital microscope of biological microscope with camera and software for sale

Place of Origin : China

Brand Name : MSHOT

Model Number : ME11

Certification : ISO

Delivery Time : Within 3 days

Payment Terms : T/T, Paypal, L/C

MOQ : 1 set

Contact Now

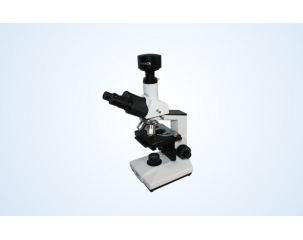

Digital Microscope ME11 for biological microscopy with camera

Digital microscope ME11 is consists of basic biological microscope and CMOS camera. It can connect to computer by USB cable, view and capture microscope imaging of biological specimen on PC, process and make measurement of your image content such as cell size. The biological microscope employs plan achromatic objectives and wide field eyepieces to get a clear image. This digital microscope is widely used in fields of biology, agriculture and industry, etc. Furthermore it is an ideal laboratory instrument for education, scientific deparments and other biology base.

Digital biological microscope ME11 specification

Eyepiece	Wide field eyepiece 10 x (FN:18mm)
Objective	Plan achromatic objective 4X /0.1
	Plan achromatic objective 10X /0.25
	Plan achromatic objective 40X /0.65(spring)
	Plan achromatic objective 100X /1.25(spring)
Observation tube	Trinocular 30°inclined
Stage	Mechanical stage Size: 210X140mm
Nosepiece	Quadruple revolving nosepiece
Focus	Rack and pinion, adjustment limit stopper and tension adjustment
Condenser	Abbe condenser NA.1.25 move up and down adjustable
Light source	tungsten-halogen lamp :6V20W (brightness adjustable) 110V/220V is selectable
Digital camera	3.0 megapixels CMOS camera
	Resolution: 2048x 1536
	Frame rate:8fps@20481536 / 40fps@640480
	Standard C-mount adapter
	Data interface in USB2.0
	Supports Windows XP/Win7/Win8 (32bit)
Software	MSHOT digital imaging system
Software functions	Image preview, capture, measurement, calibration, record video Auto white balance, auto exposure Image adjustment of color, brightness, hue and etc.
