Digital polarizing microscope

Name: Digital polarizing microscope
Brand: MSHOT
Price: 1 USD

Quality Digital polarizing microscope for sale

Place of Origin : China

Brand Name : MSHOT

Model Number : ME51

Certification : ISO

Delivery Time : Within 3 days

Payment Terms : T/T, Paypal, L/C

MOQ : 1 set

Contact Now

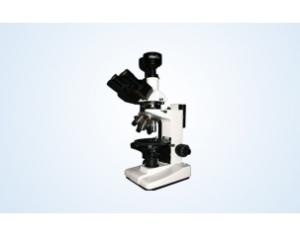

Digital Polarizing Microscope ME51

Digital polarizing microscope ME51 can be used in single polarization observation, orthogonal polarization observation and conoscope observation. It is widely applicable to research and inspection of geology and chemical engineering as well as liquid polymer materials observation, biopolymers observation and the crystalline phase observation of liquid crystal materials. It is an ideal instrument for the research and teaching in universities.

The digital camera adopts USB2.0 interface which can output high resolution digital image signal. Its bundle software has the powerful function of image capture and processing which can achieve image shooting and analyzing.

Features of digital polarizing microscope ME51:

Equipped with strain-free plan achromatic objectives or infinity strain-free plan achromatic objective and wide field eyepiece.
Converter center adjustable
Coarse/fine coaxial focusing, micro-grid values: 2μm, with locking and limited devices.
Dismountable polarizer: 360°polarization direction with 0,90,180,270 four stalls under the aperture.
Push-in polarizer: 360°polarization direction, convenient to move out the optical path.
Rotatable stage (Φ150mm), 360° evenly divided, minimum retardation resolution 6', center adjustable, with locking
6V20W Halogen bulb, brightness adjustable
Digital imaging system: 5 megapixels digital imaging system, high speed USB2.0 interface, 5fps@2592x194, 19fps@640x480，with user-friendly image analysis software.

Parameters :

Eyepiece	Wide field eyepiece 10X(Φ18mm)
Eyepiece	Graduated eyepiece 10X(Φ18mm) 0.1mm/div
Objective	Strain-free plan achromatic objectives PL 5X/0.10(cover glass 01.7 mm)
	Strain-free plan achromatic objectives PL 10X/0.25(cover glass 01.7 mm)
	Strain-free plan achromatic objectives PL 40X/0.65 (spring) (cover glass 01.7 mm)
	Strain-free plan achromatic objectives PL 60X/0.85 (spring, oil) (cover glass 01.7 mm)
Observation tube	Trinocular, inclined 30°, 100% light passed for photography
Intermediate attachment	360°adjustable analyzer with scale and micro-cursor
	Bertrand lens, push-in type, adjustable center
	λcompensator
	λ/4 compensator
	Quartz wedge compensator
Focus system	Coaxial coarse and fine focusing system, coarse movement tension can be adjusted, with adjustment limit stopper, Minimum graduation in fine movement: 2μm
Nosepiece	Quadruple(Outward tilted, including centering knob)
Stage	Rotatable stage (Φ150mm), 360° evenly divided, minimum retardation resolution 6', center adjustable, with locking
Abbe condenser	NA.1.25 , up and down movable
Polarizer	360° polarization direction with 0,90,180,270 four stalls
Illumination	6V20W Halogen lamp, brightness adjustable
Digital camera	5 megapixels
Digital camera	USB2.0 interface,5fps@2592*1944
Image Software	MSHOT Digital microscope imaging software
Software Function	Image preview, capture, measurement, calibration, record video, auto white balance, auto exposure Image adjustment of color, brightness, hue and etc.

ME51 Digital Polarizing Microscope Optional accessories:

Eyepiece	Wide field WF16X(Φ11mm)
Objective （center adjustable）	Strain-free plan achromatic objectives (cover glass thickness: 0.17mm) PL 20x/0.40
	Strain-free plan achromatic objectives (no cover glass) PL 100x/1.25 (oil, spring)
	Strain-free plan achromatic objectives (no cover glass) PL L 20x/0.40
	Strain-free plan achromatic objectives (no cover glass) PL L 50x/0.70
	Strain-free plan achromatic objectives (no cover glass) PL L 80x/0.80
	Strain-free plan achromatic objectives (dry) (no cover glass) PL L100x/0.85(spring)
Nosepiece	Quadruple (Outward tilted) ,objective center adjustable
Attachable mechanical stage	Move range: 30mm*25mm
C-mount adapter	0.4x
	0.5x
	1x
	0.5x, with divided scale, 0.1mm/div
Camera	MD30/MD50/MD90 CMOS cameras
Camera	MC15/MC20/MC30/MC50 CCD cameras
