Digital microscope of inverted phase contrast

Name: Digital microscope of inverted phase contrast
Brand: MSHOT
Price: 1 USD

Quality Digital microscope of inverted phase contrast for sale

Place of Origin : China

Brand Name : MSHOT

Model Number : ME41

Certification : ISO

Delivery Time : Within 3 days

Payment Terms : T/T, Paypal, L/C

MOQ : 1 set

Contact Now

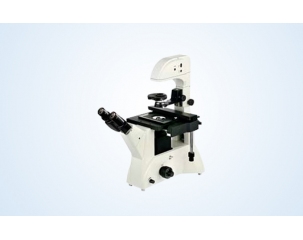

Digital microscope in inverted phase contrast ME41

Digital microscope ME41 is a inverted phase contrast with high resolution cmos camera. The digital inverted microscope employs the excellent infinity optical system. The compact, stability and rigidity body meets the requirement of anti-shock in operation. It has long working distance plan objectives and wide field eyepiece. The swing-in and swing-out type condenser system can achieve doing non-contaminated cultured cells observation in the high culture dish or in the cylindrical flask. The ergonomics design makes the operation convenient and comfortable in a wider space.

The microscope is applicable in the micro observation of cells tissue and transparent liquid tissue as well dynamic observation of culture tissue in the culture dish. It is widely used in the fields including scientific institute, universities, medical and health department, inspection and quarantine, agriculture and dairy farming, etc.

Its software has the powerful function of image capture and processing which can achieve image capture, measurement and analyzing.

ME41 digital inverted biological microscope specification

Eyepiece	Wide field WF10X(field number:Φ22mm)
	Centering telescope
Infinity and long working distance plan achromatic objective	Objective	PLL 10X0.25 Work distance:4.3 mm, Cover glass thickness:1.2mm.
		PLL 20X0.40 Work distance:8.0 mm, Cover glass thickness:1.2mm.
		PLL 40X0.65 Work distance:3.5 mm, Cover glass thickness:1.2mm.
	Phase Contrast Objective	PLL 10X0.25 PHP2 Work distance:4.3 mm, Cover glass thickness:1.2mm.
Observation tube	Inclined 45°and interpupillary distance is 53~75mm.
Nosepiece	Quintuple nosepiece
Stage	Fixed stage overall size: 227mmX208mm
	Glass rotundity stage overall size : Ф118mm
	Mechanical moving device, moving range : 77mm (longitudinal)X114mm (transverse)
	Culture dish holder 1	Inside locating slot size: 86mm (W)X129.5mm (L), optional with a circular culture dish Ф87.5mm
	Culture dish holder 2	Inside locating slot size: 34mm (W)X77.5mm (L), optional with a circular culture dish Ф68.5mm
	Culture dish holder 3	Inside locating slot size::57mm (W)X82mm (L)
Condenser system	Long working distance condenser, working distance: 55mm, with turnplate phase contrast unit
Illumination system	6V30W halogen, brightness adjustable
Filter	Frosted glass and blue , green filter
Digital camera	5 megapixels,USB2.0 interface,5fps@2592*1944
Image Software	MSHOT Digital microscope imaging software
Software Function	Image preview, capture, measurement, calibration, record video, auto white balance, auto exposure Image adjustment of color, brightness, hue and etc.

ME41 Digital Camera Optional Accessories:

Eyepiece	Graduated eyepiece(field number:Φ22mm),0.10mm/Div
Phase Contrast Objective	PL L20X/0.40PHP2 Work distance:8.0 mm
Phase Contrast Objective	PL L40X/0.60PHP2 Work distance:3.5 mm
Nosepiece	Sextuple nosepiece
Optical interface	0.5X C-mount adapter
Optical interface	1X C-mount adapter
Digital camera	CCD cameras / CMOS cameras
Camera adapter	Canon, Nikon, Olympus SLR etc.
