5.0MP USB3.0 Camera for microscope

  • 1
  • 2
  • 3

Place of Origin : China

Brand Name : MSHOT

Model Number : MD50-T

Certification : ISO,CE,FCC

Delivery Time : Within 3 days

Payment Terms : T/T, Paypal.L/C

MOQ : 1 set

Contact Now

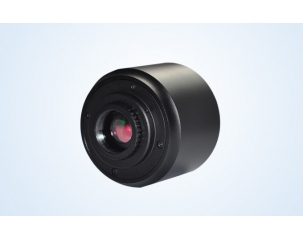

5.0MP USB3.0 CMOS Camera MD50-T

MD50-T is a CMOS Camera with USB3.0 digital adapter. It is the first released USB3.0 digital camera for microscopy imaging of MSHOT. The camera adopts the newest USB 3.0 technology, which is highly expected in the microscopy imaging field. The technology highly improved performance of MD50-T microscope camera.


Features of MD50-T USB3.0 Microscope Camera
  • The transfer speed of USB 3.0 is much faster than USB2.0’s. Theoretically, the transfer speed of USB 2.0 is 60 mb/s, while USB 3.0 can reach 640 mb/s.
  • In high resolution of 5.0 Megapixels and USB 3.0 port, also support TWAIN and DirectShow interfaces, fully compatible with OS Windows XP, Windows 7(32/64 bits), Windows 8.

This USB3.0 camera is suitable for microscopic imaging both of bright field and fluorescence. Widely used in industrial inspection, high-speed acquisition, medical, scientific research, education, forensic analysis and other fields.

Parameters :

Item5.0 megapixels USB3.0 CMOS Microscope Camera MD50-T
Resolution1/2.5" CMOS color sensor,
5.70mm(H)x 4.28mm(V)
diagonal:7.13mm
Effective pixel2592H×1944V
Interface typeUSB 3.0USB 2.0
Resolution & frame rate2592×194414 fps7 fps
1920×1080（ROI）30 fps15 fps
1024×768（ROI）48 fps45 fps
1280×960（SUM）35 fps25 fps
1280×960（BIN）35 fps25 fps
640×480（BIN）55 fps55 fps
640×480（SUM）55 fps55 fps
Any size of ROIDepends on the image size
Pixel depth8/10/12bit
Size of pixel2.2μm×2.2μm
Imaging data formatRaw8/Raw10/Raw12
Sensitivity1.76V/Lux-sec(550nm)
SNR38.5dB
Dynamic range67.7dB
Sharpness1100-1200 line
Scanning ModeProgressive scanning
ShutterElectronic rolling shutter
Exposure time0.036~300ms
Exposure controlauto/manual, zone exposure
White balanceauto/one-push/zone white balance
Programmable controlImage size, acquire, exposure time, gain, brightness, contrast, RGB gain, GAMMA, sharpness, software noise reduction, saturation
OSWindows XP(32bits); Win7(32/64bits)；win8（32bits）
Software InterfaceTWAIN, DirectShow, WDM
Data interfaceUSB3.0 5Gbps(640M/S)
Instructionstandby mode and electrify mode keep lighting with LED, flashing while work
Power consumptionLess than 2.5W
Woking temperature0~50℃
Working humidity10%-90%（without freezing）
Optical adapterStandard C-mount
