Trinocular Metallurgical Microscope in reflective and transmitted light

Name: Trinocular Metallurgical Microscope in reflective and transmitted light
Brand: MSHOT
Price: 1 USD

Quality Trinocular Metallurgical Microscope in reflective and transmitted light for sale

Place of Origin : China

Brand Name : MSHOT

Model Number : MJ22

Certification : ISO

Packaging Details : Carton

Delivery Time : Within 3 days

Payment Terms : T/T,L/C,Paypal

MOQ : 1 set

Contact Now

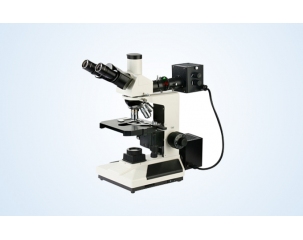

Trinocular Metallurgical Microscope MJ22

Reflective and Transmitted Light

MJ22 metallurgical microscope is a upright microscope and applies to the microscopic observation of non-transparent or transparent objects. This instrument is equipped with reflective illumination and transmitted illumination system, plan achromatic objectives in long working distance , wide field eyepieces and built-in polarization observation device. With the features of high image sharpness, good contrast and easy operation, MJ22 is an ideal instrument for the research of biology, metallography, mineralogy, precision engineering and electronics. It is widely used in universities, research institutions, factories and other sections.

MJ22 Metallurgical Microscope Features:

Equipped with plan achromatic long working distance objectives( (no cover glass) in wide and clear field.
Coaxial coarse/fine focus system, tensional adjustable, with adjustment limit stop, minimum graduation in fine movement: 2μm.
Equipped with two illumination system in epi-illumination and transmitted illumination, can do microscopic observation for non-transparent specimen and transparent specimen.
6V 20W halogen lamp, brightness adjustable.
Trinocular, can switch to normal observation or to polarization observation, 100% light passed for photography .

Parameters :

Eyepiece	Wide field 10X(Φ 18mm)
Objective	Plan achromatic(no cover glass) PL5X/0.12 long working distance
	Plan achromatic(no cover glass) PL10X/0.25 long working distance
	Plan achromatic(no cover glass) PL 40X/0.60 long working distance
	Plan achromatic(no cover glass) PL 60X/0.75 (spring) long working distance
Eyepiece tube	Trinocular, inclined 30° (built-in polarizer )
Epi-illumination system	6V 20w, halogen lamp, adjustable brightness
Epi-illumination system	With field diaphragm, aperture diaphragm, analyzer, (yellow, blue, green filters and frosted filter)
Focus system	Coaxial coarse/fine focus system, with tension adjustable and limit stop, minimum graduation in fine movement: 2μm.
Stage	Double layer mechanical ( Size: 185mmX140mm, moving range: 75mmX50mm)
Nosepiece	Quadruple fixed nosepiece with inward tilt
Transmitted illumination unit	Abbe condenser NA. 1.25 rack & pinion adjustable
	Blue filter and frosted filter
	Condenser for halogen lamp
	6V 20w halogen lamp, adjustable control.

Optional Accessories

Eyepiece	Wide field 16X(Φ 11mm)
Eyepiece	Graduated 10X (Φ18mm) 0.1mm / Div
Objectives	Plan achromatic(no cover glass) PL 20X/0.4 long working distance
	Plan achromatic(no cover glass) PL 50X/0.70 long working distance
	Plan achromatic(no cover glass) PL 80X/0.80 long working distance
	Plan achromatic(no cover glass) PL 100X/0.85 long working distance (spring)
	Plan achromatic(no cover glass) PL 100X/1.25 (spring, oil)
Nosepiece	Quintuple (Fixed nosepiece with inward locating)
Filters	Green filter
Filters	Blue filter
Digital Cameras	MD30/50/50-T/90 CMOS Cameras
Digital Cameras	MC15/20/50/55 CCD Cameras
DSLR adapter	For Canon, Olympus, Nikon DSLR
