Laboratory inverted phase contrast microscope with fluorescent

Place of Origin : China

Brand Name : MSHOT

Certification : ISO,CE,FCC

Model Number : MF50/MF50-LED

Delivery Time : Within 7 days

Payment Terms : T/T, Paypal, L/C

MOQ : 1

Free warranty : 1 year free

Contact Now

MF50/MF50-LED Inverted Fluorescence Microscope

Inverted fluorescence microscope MF50 / MF50-LED is ideal for routine fluorescence laboratory work. It is consist inverted biological microscope and fluorescent illumination. The microscope configured long working distance plan achromatic objectives and wide field eyepiece to get high quality fluorescence imaging. The inverted fluorescence microscope is applied to living cells and transparent liquid tissue microscopic observation in the field of biological pharmaceuticals, medical testing and disease prevention.

MF50/MF50-LED inverted fluorescence microscope benefits:

Independent infinity achromatic optical system.
Easy to use with phase contrast, fluorescent, bright field and digital imaging.
More accuracy with fine adjusting handle scale value 0.001mm
72mm long working distance to offer sufficient space for culture dish.
LED light source at fluorescence illumination is optional.
100% light pass observation tube for brighter field of view.

Item No.	MF50	MF50-LED
Observation head	Trinocular, interpupillary distance 48~75mm, vision degree adjustable
Eyepiece	Wide field plan 10X (FN:20mm), high eyepoint
	Centering telescope
Objectives	Infinity long working distance plan achromatic 10X
	Infinity long working distance plan achromatic 20X
	Infinity long working distance plan achromatic 40X
	Infinity long working distance phase contrast plan achromatic 10X
	Infinity long working distance phase contrast plan achromatic 20X
Focus system	Coaxial coarse and fine with limit and locking devices, low coaxial focus adjusting handle, fine adjusting handle scale value 0.001mm
Stage	Mechanical moving stage 180mmX155mm, moving range 80mmX50mm, water droplet slides (Φ110), tabletting group
Nosepiece	Quintuple revolving nosepiece with bearing inner location and anti-fungus device
Filter cube transfer	Push-pull
Fluorescent illumination system	Filter cubes
	Blue excitation wavelength 460nm~490nm
	Green excitation wavelength 510nm~550nm
	UV excitation wavelength 330nm~380nm	No
	Lamp house
	100W/DC Osram mercury lamp	LED light source
	Input voltage AC220V/110V±15%, 50~60Hz	Continous brightness adjustment and 100%,75%, 50% set position
	Maximum output voltage DC18V~40V	Two 3W LED lamps
	Stable output electric current 3.6A～4.9A	Input power DC4.2V 2A
Epi illumination	6V30W Osram halogen lamp
UV barrier plate	Yes	No need
Spare lamp	6V30W Osram halogen lamp
Filters	Blue, green, yellow
C-mount adapter	0.5X C-mount adapter

Optional Accessories
Observation tube	Binocular,interpupillary distance 48~75mm, vision degree adjustable ( for eyepiece FN20mm)
	Binocular,interpupillary distance 52~75mm, vision degree adjustable ( for eyepiece FN22mm)
	Trinocular,interpupillary distance 52~75mm, vision degree adjustable ( for eyepiece FN22mm)
Eyepieces	High eye point 16X (FN:13mm)
	High eye point 10X (FN:22mm)
	High eye point with cross division 10X (FN:18mm)
	High eye point with cross division 10X (FN:20mm)
Bright field objectives	Infinity long working distance plan achromatic 4X
Bright field objectives	Infinity long working distance plan achromatic 60X
Phase contrast objectives	Infinity long working distance phase contrast plan achromatic 4X, 40X
Phase contrast plate	4X, 40X
C-mount adapter	1X C-mount adapter
C-mount adapter	0.25X C-mount adapter for 1/3" CCD camera
Digital Camera	High sensitivity CCD

Quality Laboratory inverted phase contrast microscope with fluorescent for sale

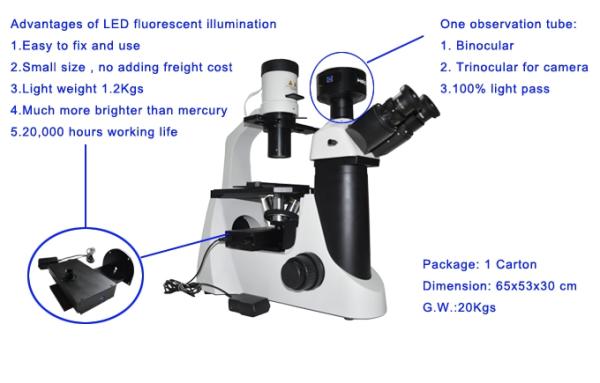

Laboratory inverted phase contrast microscope with fluorescent Images
